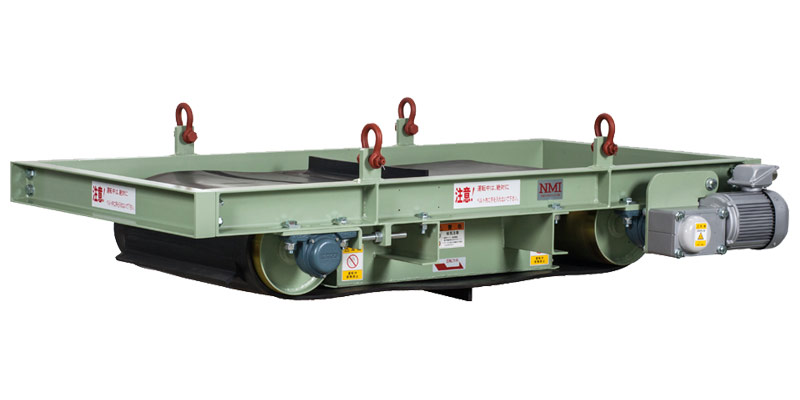

Suspension Permanent Magnetic Separator Model: PUF-S

＜Usage＞

PUF-S is designed to install above and 90 degrees to the conveyor belt to remove scrap metals from the materials on the moving conveyor.

＜Features＞

1. Permanent magnet saves energy cost on magnetization power.
2. Tough durable design is suitable for outdoor use.
3. Compact Size with reliable performance.

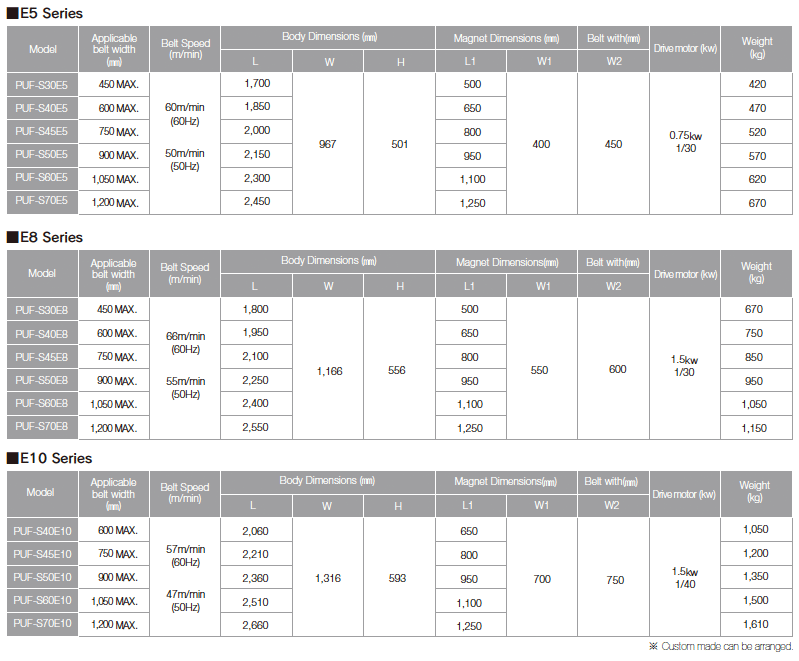

＜Specifications＞

1. Available 3 models depending on the magnetic force.
2.Standard model equipped with wear protection rubber. Also, available in oil protection rubber and protection cover models.
3. Convenient hooks for hanging installation.
