Magnetic Pulley Model: WN-RWN

p08

  • Usage・Features・Specifications
  • Catalog

＜Usage＞

Simple exchange from the head pulley to magnetic pulley will transform a conveyer to separator of iron particles from the raw material. It’s the number one item for food processing factories to recycling facilities.

＜Features＞

1. Selection of vertical and horizontal pole.
2. Available Samarium Cobalt magnet type for high temp. application.
3. Available custom made of pulley shaft and pole.

＜Specifications＞

1. Standard（ WN）：Vertical 2,000 gauss, Horizontal 1,000 gauss（ pulley surface）
2. High intensity magnetic power type（ RWN）： horizontal 3,000/5,000 gauss (pulley surface)
3. Pulley OD：Vertical type Φ215～Φ318 Horizontal type Φ215～Φ457
4. Available custom made on pulley length and shaft size

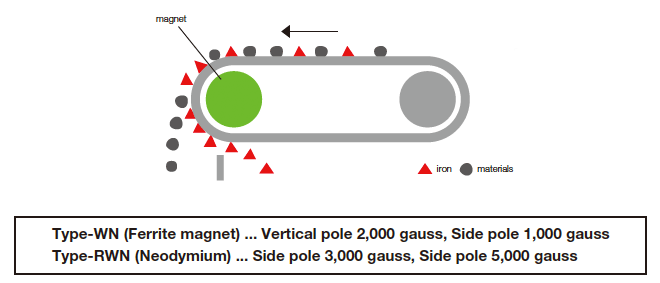

ep08figure

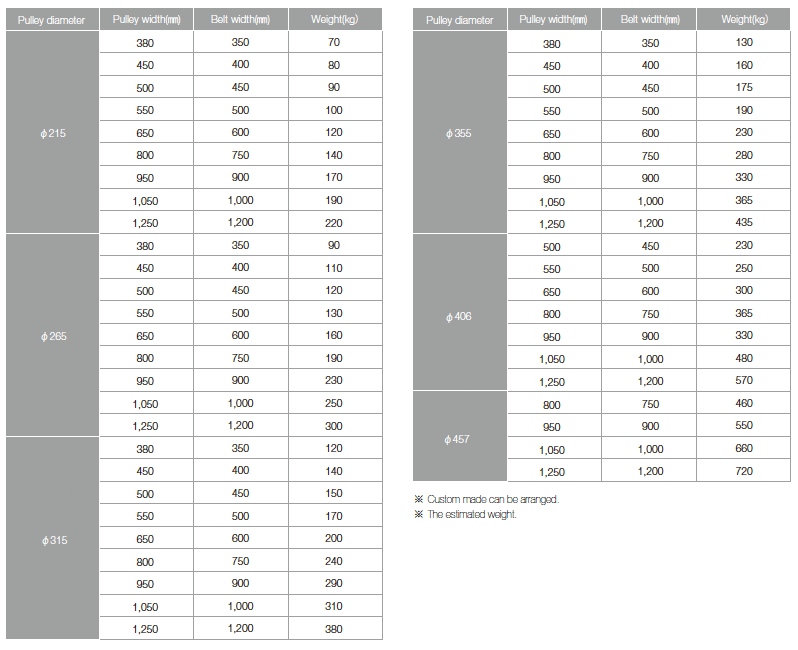

ep08size
