Stainless Steel Separator HGMP
For removal of stainless flakes separated from processed stainless products.
- Usage・Features・Specifications
- vibratory feeder
- Catalog
＜Usage＞

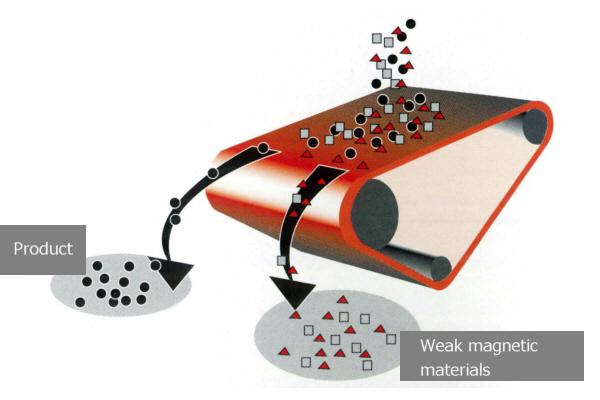

HGMP is designed to generate the high-intensity magnetic force to remove weak magnetic materials, such as stainless nails, bolts and nuts as well as stainless flakes from food products, powdered materials, wood chips and others.
＜Features＞
1. Superior 12,000 gauss on drum surface.
2. Permanent magnetic (neodymium) is used for the high intensity magnetic pulley.
3. Pulley permanent magnet makes instant separation.
＜Specifications＞

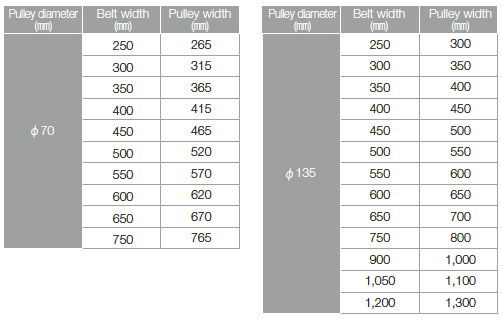

1. Available 2 sizes of pulley OD 70 and 135 mm.
2. Optional casing type.
3. Volumetric feeder will improve iron separation results.

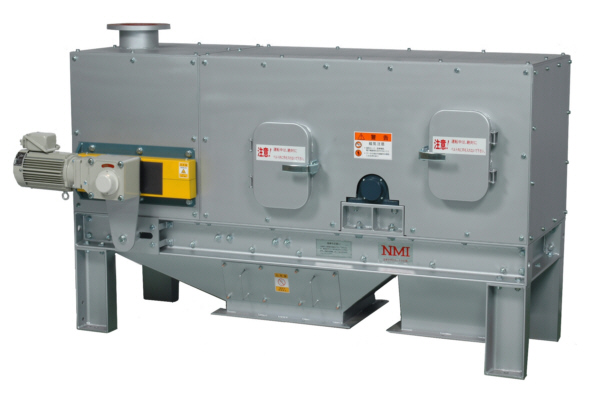

HGMP-φ70×300L
HGMP-φ135×600L

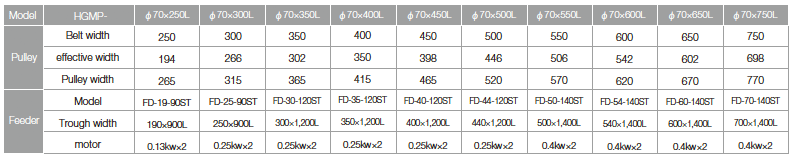

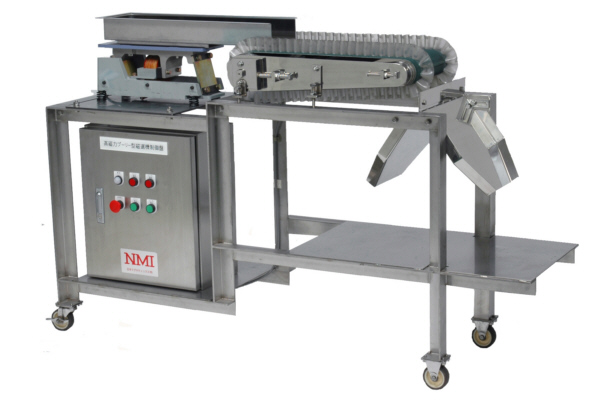

Type HGMP with vibratory feeder
＜Features＞
Combination with Vibration Feeder improves results.
＜Specifications＞
1．Controller included.
2．Vibration feeder: SUS304, Mount:SS
