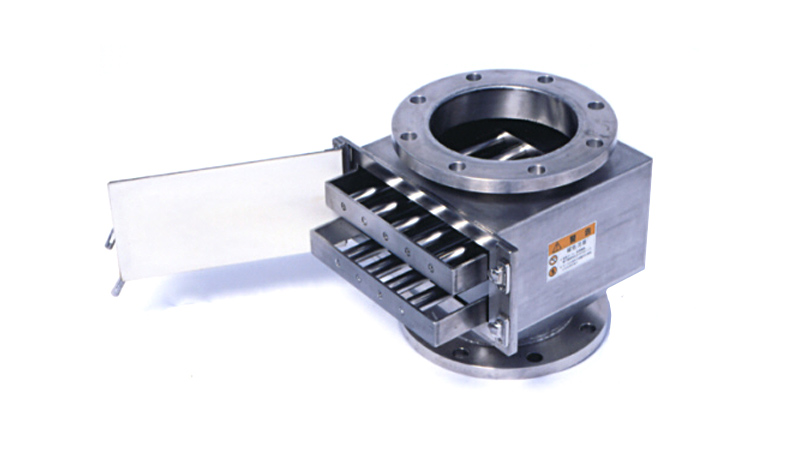

Grate Magnet with Casing
※Double Tube Type
- Usage・Features・Specifications
- Catalog
＜Usage＞
Easy installation with connection of flange or ferrule, and quick cleaning by pulling out the grate magnet.
＜Features＞
1. Available multiple layer resulting superior efficiency.
2. Custom made fitting to designated location.
3. Double tubing ensures quick cleaning.
＜Specifications＞

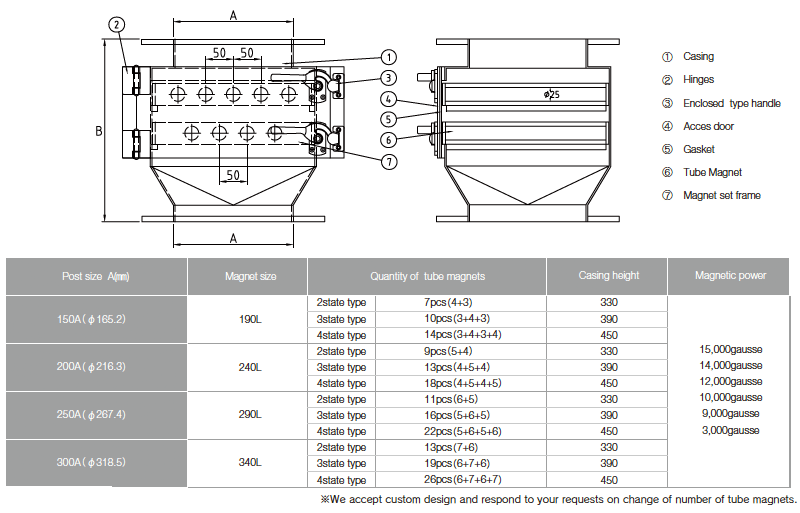

1. You can select the type of bar magnet.(See tube magnet design)
2. Casing Material: SUS304, SUS316
3. Flange or other connections available.
Other types of Grate Magnet with Casing
- Double Tube Type
- Round Casing
- Vertical grate type
