Electromagnetic Separator Model: CG

＜Usage＞

1. Model CG is designed to remove fine iron powders from dry powdered materials
to get the best results in food, chemical, plastic, ceramic, medical industries and many other.
2. Specific product is designed only to be used for secondary cell battery to handle cathode material and anode material.
Electrically conductive materials like lead, copper, zinc, tin, bronze are not used for this case.

＜Features＞

1. Electro-magnetized screens capture fine iron particles in microns.
2. Vibration motor ensures effective flow to the filter screen.
3. Limited amount of roll-in material.

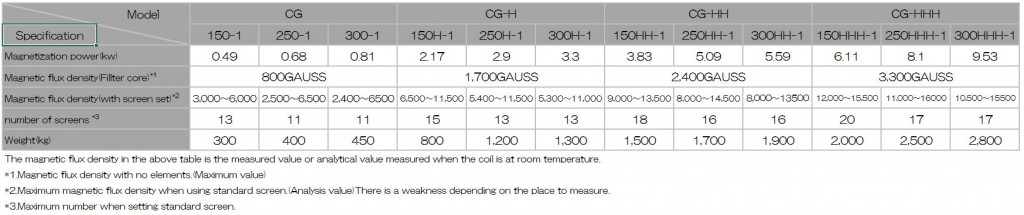

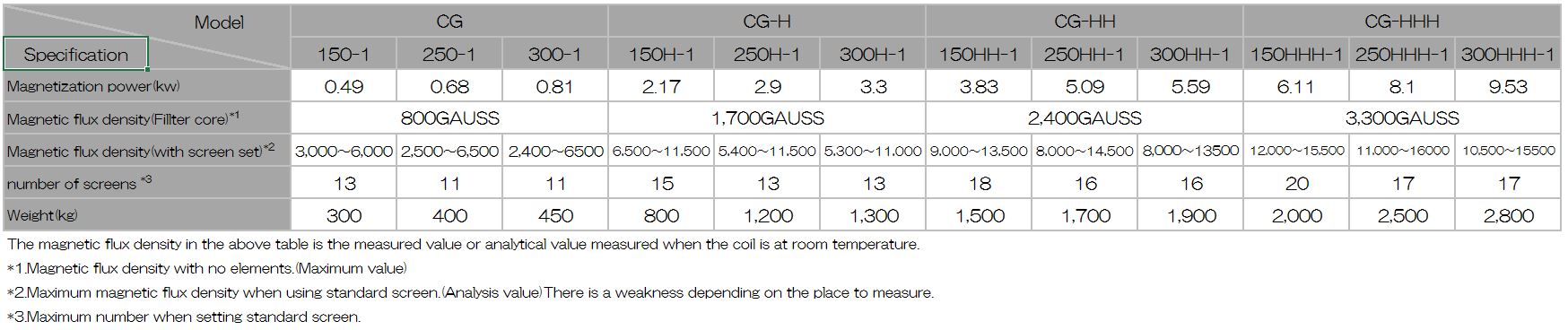

＜Specifications＞

1. Standard (3,000 gauss) to high magnetic force (12,000 gauss)
2. Additional Maghammer helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller included

※Nippon Magnetics, Inc. Channel – YouTube

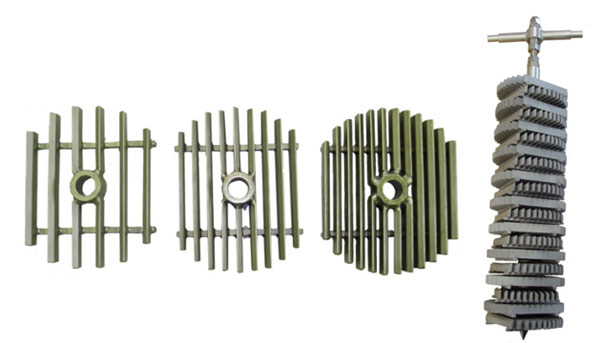

＜Features＞

Durable strong magnetic filter materials and variety of screen pitch to fit to the various kinds of grain size and flow.
Custom made of screen design, material, and size can be arranged as well as steel bowl as element.

＜Specifications＞

1. Standard openings: 5mm/7mm/10mm/12mm/15mm/20mm
2. Screen materials: SUS430

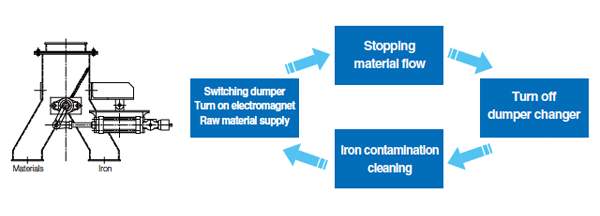

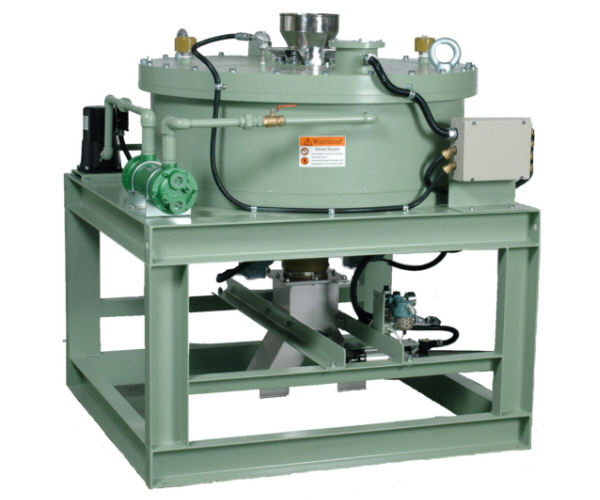

AT-CG(Automated dumper system)

AT-CG-150HHH

AT-CG model can be combined with a material feed driver, an automated CG iron-powder and a timer to achieve an operation process that can be repeated at the desired interval.

Catalog Download

• You can download various catalogs from the “Catalog Download” page.
