Eddy Current Separator Model: ALS-L Series

＜Usage＞

1. Recovery aluminum cans from plastic and glass bottles.
2. High efficiency of recovery of aluminum from city waste.
3. Separation of nails and iron steels from crushed machines.
4. Recovery of valuable metals from glass cullet.

Aluminum separator is useful in situations such as:

●Bulky-waste crush lines
Aluminum separators enhance the efficiency of separation and recovary of aluminum from crushed city waste.
●Recovery of conductors from glass cullet
Aluminum separators streamline the recovery and separation of valuable metals contained in glass cullet.
●Processing of aluminum molding sand
Aluminum separators wield will be useful in the recovery of aluminum scrap in aluminum-shell-sand recycling lines.
●Classification of aluminum and steel cans
Aluminum separators automatically pick up aluminum and steel cans from all waste collected from the recycling stations and service areas along highways.
●Recovery of aluminum from PET bottles
Aluminum separators allow for efficient separation and recovery of aluminum from crushed PET bottles.
●Separation of nails used in pachinko game machines.
●Recovery other conductors

＜Features＞

1. 2 models for material size. ALS-L for large objects like cans & ALS-S for small objects.
2. Parallel usage with vibration feeder provides stable feeding volume and increase separation efficiency.

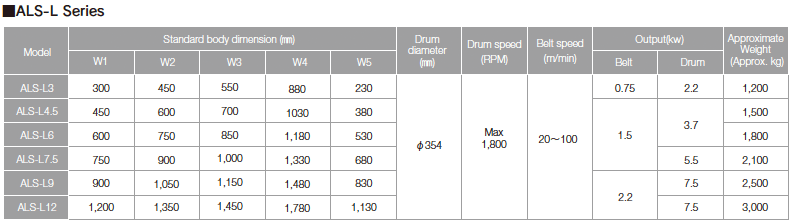

＜Specifications＞

1. Magnetic Drum Speed : ALS-L (Max. 1,800rpm) ALS-S (Max. 2,500rpm)
2. Including a controller unit
3. Belt drive with hypoid gear motor.

Separation of aluminum cans from steel cans / Separated non-ferrous metals

※Nippon Magnetics, Inc. Channel – YouTube

Fleming’s left hand law

Mechanism of Eddy Current Separator

The high-energy permanent magnet located inside the high-speed drum creates a strong electromagnetic induction phenomenon on the surface of the drum. When the aluminum, copper, brass and magnesium pass through this magnetic field, the eddy current occurs repelling them respective to their conductivity thereby pushing each the distance determined by Fleming’s left hand rule. The devise is useful for recycling, resource collection, and as an aluminum separator.
